VS300 Desktop Visual Dispensing MachineTWS Wireless Headset Receiver Linear Motor Speaker Flat Motor LCM

Name: VS300 Desktop Visual Dispensing MachineTWS Wireless Headset Receiver Linear Motor Speaker Flat Motor LCM
Brand: MingSeal
Price: 1000 USD

China VS300 Desktop Visual Dispensing MachineTWS Wireless Headset Receiver Linear Motor Speaker Flat Motor LCM wholesale

Brand Name : MingSeal

Model Number : VS300

Certification : ISO CE

Place of Origin : China

MOQ : 1

Price : $1000-$150000

Payment Terms : L/C, T/T, D/A, D/P, MoneyGram, Western Union

Delivery Time : 5-60 days

Packaging Details : WOODEN

Name : VS300

Frame structure : Desktop

Cleanliness of working area : Class 100 (Class 1000 workshop)

Application fields : MEMS Microphone/Barometer soldering 、CCM gluing

Dimensions W*D*H : 860×630×690mm

machine weight : 75KG

Contact Now

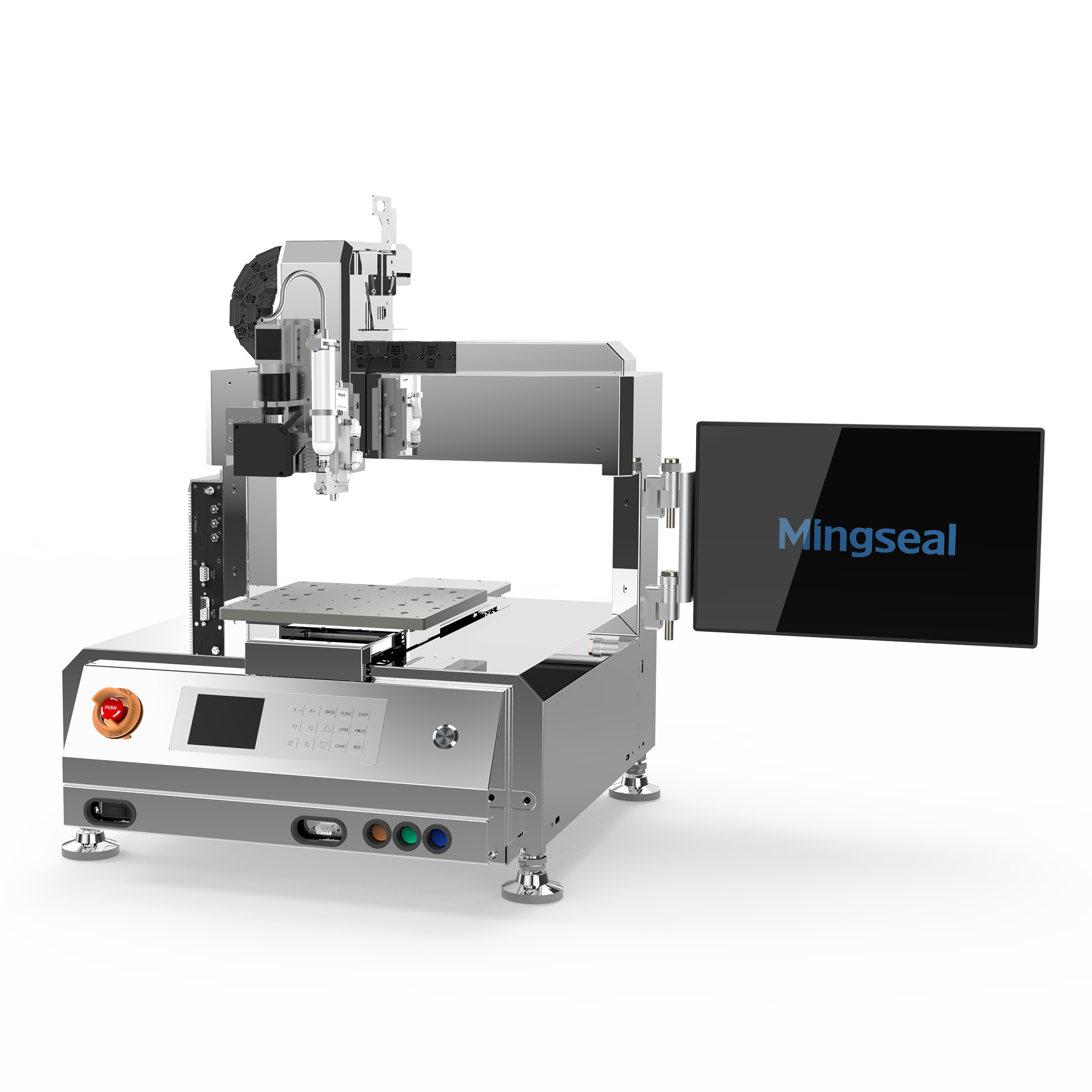

VS300 Desktop Visual Dispensing Machine

The VS series is a high-precision visual dispensing machine with glue AOI, 360° rotation and tilting & rotation functions, and has reached the industry-leading level in terms of performance, ease of use and reliability, etc.

Features and Advantages

The servo motor and the grinding screw module are used to ensure high precision, high speed, high eﬃciency and high consistency of the system during operation.
The repetitive positioning accuracy of the platform can be up to 0.01mm; and in combination with independent core pneumatic controller or jetting valve, high-precision and stable discharge and precise trajectory control of the ﬂuid can be achieved.
The stable glue line width or glue dot diameter of 0.2mm can be achieved by the non-contact method.
Intelligent modules such as intelligent visual recognition, laser altimetry, automatic needle correction, online UV exposure and liquid level detection are available for selection.
The unique dispensing process module is compatible with blowing and suction method for automatic valve cleaning, eﬀectively preventing glue hanging.

Application Fields

TWS Wireless Headset
Receiver
Linear Motor
Speaker
Flat Motor
LCM

Technical Specifications

Structure	Frame structure	Desktop
Cleanliness Level	Cleanliness of working area	Class 100 (Class 1000 workshop)
Product Application Fields	Application fields	MEMS Microphone/Barometer soldering ,CCM gluing
	Max. fixture weight	10kg (with Product )
	Transmission mechanisms	Servo motor&Screw module
	Repeatability	X/Y: ±0.015mm
Motion System	Positioning accuracy	X/Y: ±0.025mm
	Max. movement speed	X/Y:500mm/s Z:300mm/s
	Max. accelerated velocity	X/Y:0.5g Z:0.3g
	Visual positioning method	Mark/Product appearance featuresn
Vision System	Recognition accuracy	±1Pixel
Facilities	Dimensions WDH	860×630×690mm
	machine weight	75KG
	Power supply	220V AC 50Hz
	Power	500W
	Inhale	0.5Mpa,150L/min
	Working ambient temperature	0-40℃
	Working ambient Relative humidity	20-90% (no dewing)
